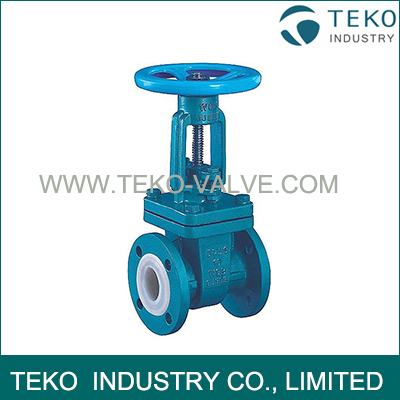

Chemical Resistant PFA PTFE Lined Valves , Rising Stem High Temperature PTFE Lined Gate Valve
Chemical Resistant PFA PTFE Lined Valves , Rising Stem High Temperature PTFE Lined Gate Valve
- Availability: In Stock
- Product Model: Z41F4
$0.00
Ex Tax: $0.00

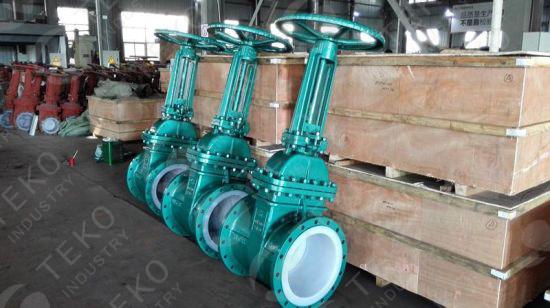

Rising Stem High Temperature Chemical Resistant PFA PTFE Lined Gate Valves For Chemical Plant
Specifications:
- Material:WCB Lined PTFE
- Size rating:NPS 1"~12"
- Working Pressure:Class 150 Lb, DIN PN10
Applicable Standards
| STANDARD | 1. Design and Manufacture: | ASME B16.34 |
| 2. End-to-end: | ASME16.10 | |
| 3. Flange end: | ANSI 16.5 | |
| 4. Inspection and test: | API 598 |
Features:
Rising Stem And Non-rising Stem are available.
Fluorine Material Liner to resist most severe chemical
No limit on the installation direction
Wide range of chemical resistance, including chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc
PTFE, PFA and FEP for different temperature applications.
