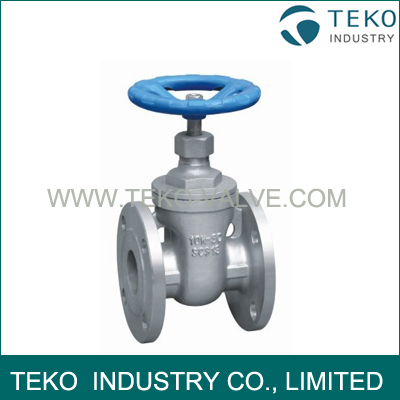

JIS Non-rising Stem Gate Valve
JIS Non-rising Stem Gate Valve
- Availability: In Stock
- Product Model: Z45T
$0.00
Ex Tax: $0.00
JIS Non-rising Stem Gate Valve
Technical Data:
1) Size rating: 1/2”~4”
2) Working Pressure:10K
3) Design Standard:JIS B2083
4) Flange Drilling:JIS B2214
5) Test Standard：JIS B 2003
Dimensions of Non-rising Stem Gate Valve
| DN | L | H | D0 |
| 15 | 82 | 130 | 76 |
| 20 | 92 | 150 | 76 |
| 25 | 102 | 172.5 | 107 |
| 32 | 110 | 176 | 107 |
| 40 | 126 | 178 | 117 |
| 50 | 140 | 187.5 | 133 |
| 65 | 172 | 214.5 | 160 |
| 80 | 192 | 250 | 180 |
| 100 | 210 | 298 | 200 |
