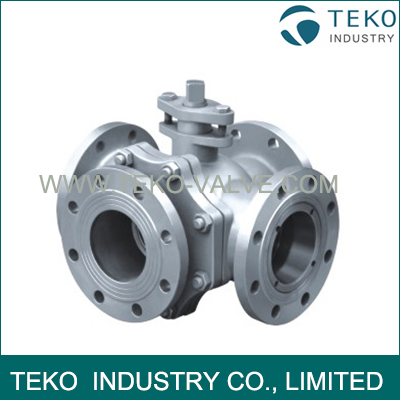

Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG
- Availability: In Stock
- Product Model: Q49F
Straight Type Stainless Steel Flanged End Four Way JIS Ball Valve For WOG

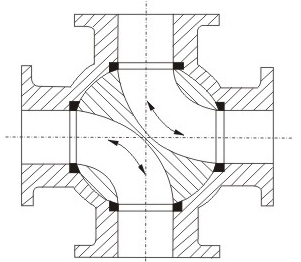

Working Principle
With the structure of flange connection, the valve has such advantages as silent operation, low flow pressure drop, quick direction changing. The TEKO Four way ball valve is designed with four seal ring, which offers reliable bubble tight seal during directional process. The truly virgin PTFE seal ring has a good and stable performance and reduces the maintenance fee for end user.
Use and specifications
The Four Way Ball Valve is applied in the pipes with media such as water, steam, and oil with working temperature less than or equal to 150 ℃, used to change the flow direction and connect or cut off the media in pipes.
Technical Data:
| Size rating: | 1/2”~12” |
| Working Pressure: | 10K |
| Design Standard: | API 608 |
| Flange Drilling: | JIS B2002 |
| Test Standard: | IS B 2003 |
Dimensions:
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 150 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 320 | 380 | 440 | 550 | 670 | 720 |
| D | 95 | 100 | 125 | 135 | 140 | 155 | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 |
| D1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 |
| Z-￠d | 4*15 | 4*15 | 4*19 | 4*19 | 4*19 | 4*19 | 4*19 | 8*19 | 8*19 | 8*23 | 8*23 | 12*23 | 12*25 | 16*25 |
