Tilted Disc Industrial Check Valve Minimum Pressure Loss With Oil Dashpot For Water

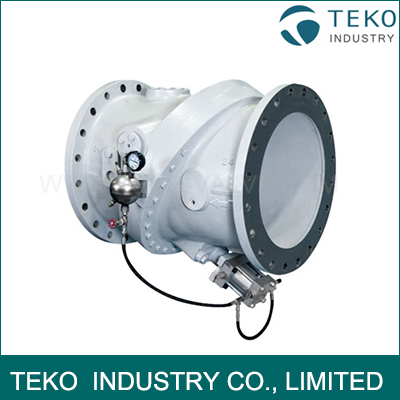

Minimum Pressure Loss Tilted Disc Check Industrial Valve With Oil Dashpot

Introduction

The tilted disc check valve provides energy efficient operation, while easily handling the most sever and demanding applications with advantage of non-slam closure, wear resistance, leak tight seating and versatility of operation.

Design features

Disc design: contured disc provides minimum headloss and energy savings.

Disc travel: 40°disc stroke results in quick closure

Body: Ultra low headloss is the result of streamlined body contouring and 140% of flow area through the seat.

Disc & body seat rings: Leak tight seating is achieved at all working pressures by utilizing a lift and tilt action which provides excellent sealing and low wear characteristics.

Pivot pins and bushings: maximum strength is achieved by utilizing large diameter pins constructed of high tensile materials and low wear characteristics.
