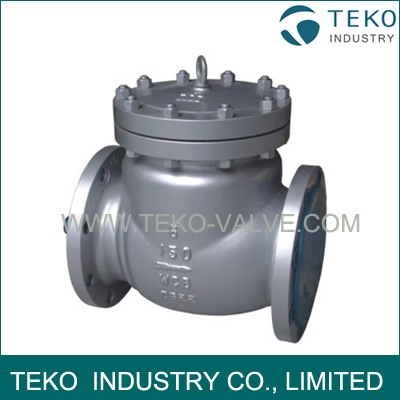

API Flanged End Swing Check Valve, Stainless Steel Check Valve

Features

Design and manufacture: API 600 and BS 1868
Face to Face Dimension: ASME B 16.10
Flange End: 24” and smaller to ASME B16.5; 26” and larger to AMSE B 16.47 Series A
B.W. End: ASME B16.25
Shell Wall Thickness: 24” and smaller to API 600 BS 1868
26” and larger to manufacture standard

Material List for API Swing Check Valve:

No. Parts Name Material
1 Body ASTM A216 Gr.WCB
2 Seat Ring ASTM A105+13Cr
3 Disc ASTM A216 Gr.WCB+13Cr
4 Hinge ASTM A216 Gr.WCB
5 Hinge Pin ASTM A 276 410
6 Washer ASTM A 276 410
7 Plug ASTM A 276 410
8 Cover Bolt ASTM A 193 Gr.B7
9 Cover Nut ASTM A194 Gr.2H
10 Gasket 304SS Jackted Graphite
11 Cover ASTM A216 Gr.WCB
12 Eye Bolt C.S.
13 Pin ASTM A276 410
14 Nut 304 S.S.
15 Washer ASTM A276 410

Note: Other materials are available on request: ASTM A 352 LCB, A217 WC1, WC6, WC9, C5, A351 CF8 CF8M, CF3, CF3M etc.
