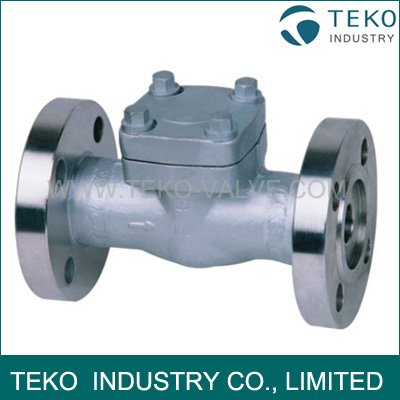

Forged Steel Check Valve, A105N Froged Steel Check Valve
Specifications:
Design and manufacture: API, ANSI, JIS, DIN, JB
Face to face dimensions: ANSIB16.10, API6D
Flange end: ANSI B16.5; JB79
Butt weld end: ANSI B16.11
Test STD: API598
Shell Wall Thickness: API600, BS1868
Material List for Forged Steel Check Valve
| No. | Parts Name | Material |
| 1 | Body | ASTM A216 Gr.WCB |
| 2 | Seat Ring | ASTM A105+13Cr |
| 3 | Disc | ASTM A216 Gr.WCB+13Cr |
| 4 | Hinge | ASTM A216 Gr.WCB |
| 5 | Hinge Pin | ASTM A 276 410 |
| 6 | Washer | ASTM A 276 410 |
| 7 | Plug | ASTM A 276 410 |
| 8 | Cover Bolt | ASTM A 193 Gr.B7 |
| 9 | Cover Nut | ASTM A194 Gr.2H |
| 10 | Gasket | 304SS Jacketed Graphite |
| 11 | Cover | ASTM A216 Gr.WCB |
| 12 | Eye Bolt | C.S. |
| 13 | Pin | ASTM A276 410 |
| 14 | Nut | 304 S.S. |
| 15 | Washer | ASTM A276 410 |
