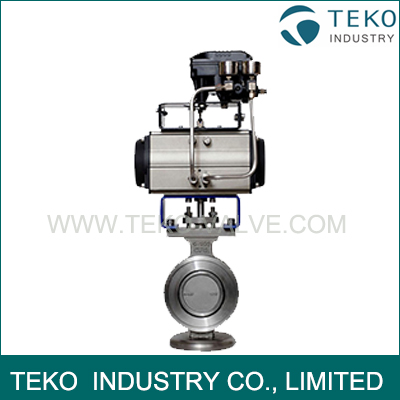

4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner
4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner
- Availability: In Stock
- Product Model: D672F
$0.00
Ex Tax: $0.00
Pneumatic Actuated Modulating High Performance Butterfly Valve With YTC Positioner
Quick Info
| Design | Pneumatic Actuated Modulating High Performance Butterfly Valve |
| Body | ASTM A 216 Gr. WCB / A 351 Gr. CF8 / CF8M |
| Size Range | 2" to 60" |
| Shaft | 17-4PH |
| Disc. | ASTM A 351 Gr. CF8 / CF8M |
| Seat | RPTFE / Metal to Metal |
| Temprature | 230°C (Soft Seating), 600°C (Metal to Metal) |
| Pressure rating | PN 10 / PN 16 / PN 25, Class150Lb |
| End Connection | As Per ANSI B 16.5 Class 150,Class 300, Class 600 |
Features
Sizes 2″ to 60″
Classes 150 to 900#
Soft, Fire safe and Metal seated designs available
Wafer, Lugged and Double Flanged Styles
Wide range of materials
Blowout Proof Stem
Standard ISO 5211 Mounting Pad
Drawing & Dimensions
| Size | A | B | C | D | E | F | G | H | K | L1 | L2 | M | P | S | X | Y | Weigh |
| 80 | 49 | 27 | 132 | 168 | 73 | 207 | 203 | 279 | 121 | 3/4-10 | M20 | 8 | 316 | 11 | 16 | 74 | 9 |
| 100 | 54 | 30 | 157 | 200 | 95 | 238 | 216 | 279 | 133 | 3/4-10 | M20 | 8 | 341 | 16 | 16 | 97 | 13 |
| 150 | 59 | 34 | 216 | 270 | 142 | 308 | 257 | 599 | 175 | 3/4-10 | M20 | 12 | 413 | 21 | 22 | 146 | 24 |
| 200 | 73 | 40 | 270 | 330 | 188 | 381 | 306 | 599 | 213 | 7/8-6 | M22 | 12 | 495 | 24 | 29 | 194 | 42 |
| 250 | 83 | 44 | 324 | 387 | 236 | 445 | 353 | 599 | 254 | 1-8 | M27 | 16 | 592 | 29 | 35 | 243 | 73 |
| 300 | 92 | 50 | 381 | 451 | 282 | 514 | 389 | - | 283 | 1-1/8-8+ | M30 | 16 | 675 | F14 | 41 | 289 | 100 |
FAQ
1. What’s your products range?
-Forging and casting
-Duplex, Super Duplex, Inconel, Monel, Hastelloy, Aluminium Bronze.
-Ball valve,Butterfly valve,Gate valve,Globe valve,Check valve, Strainer & Other valves.
