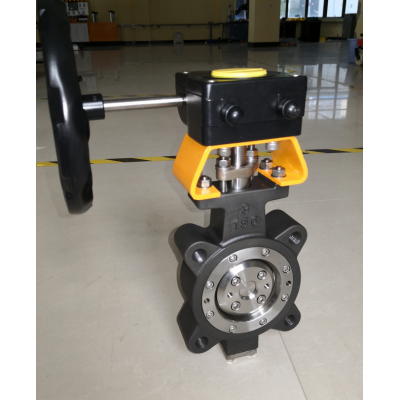

Full Metal-to-Metal Triple Eccentric High Performance Butterfly Valve With Replaceable Seat
Full Metal-to-Metal Triple Eccentric High Performance Butterfly Valve With Replaceable Seat
- Availability: In Stock
- Product Model: D373H
$0.00
Ex Tax: $0.00
Full Metal-to-Metal Triple Eccentric High Performance Butterfly Valve With Replaceable Seat
Applicable Standards
Design & Manufatuer: JB/T 8527, API609, ASME B16.3
End Connection: GB/T 12221, API609, ASME B16.46
Face to face: API609
Test & Inspection: API 598, ISO 5208
Specifications:
| Nominal Size | 2”-144” |
| Nominal pressure | Class 150 ~ Class 1500 |
| Temperature Range | -196~600 ℃ |
| End | Flange, Wafer, BW, Lug etc |
| Material | Carbon Steel, high temperature steel, Stainless steel, Titanium alloy, monel etc. |

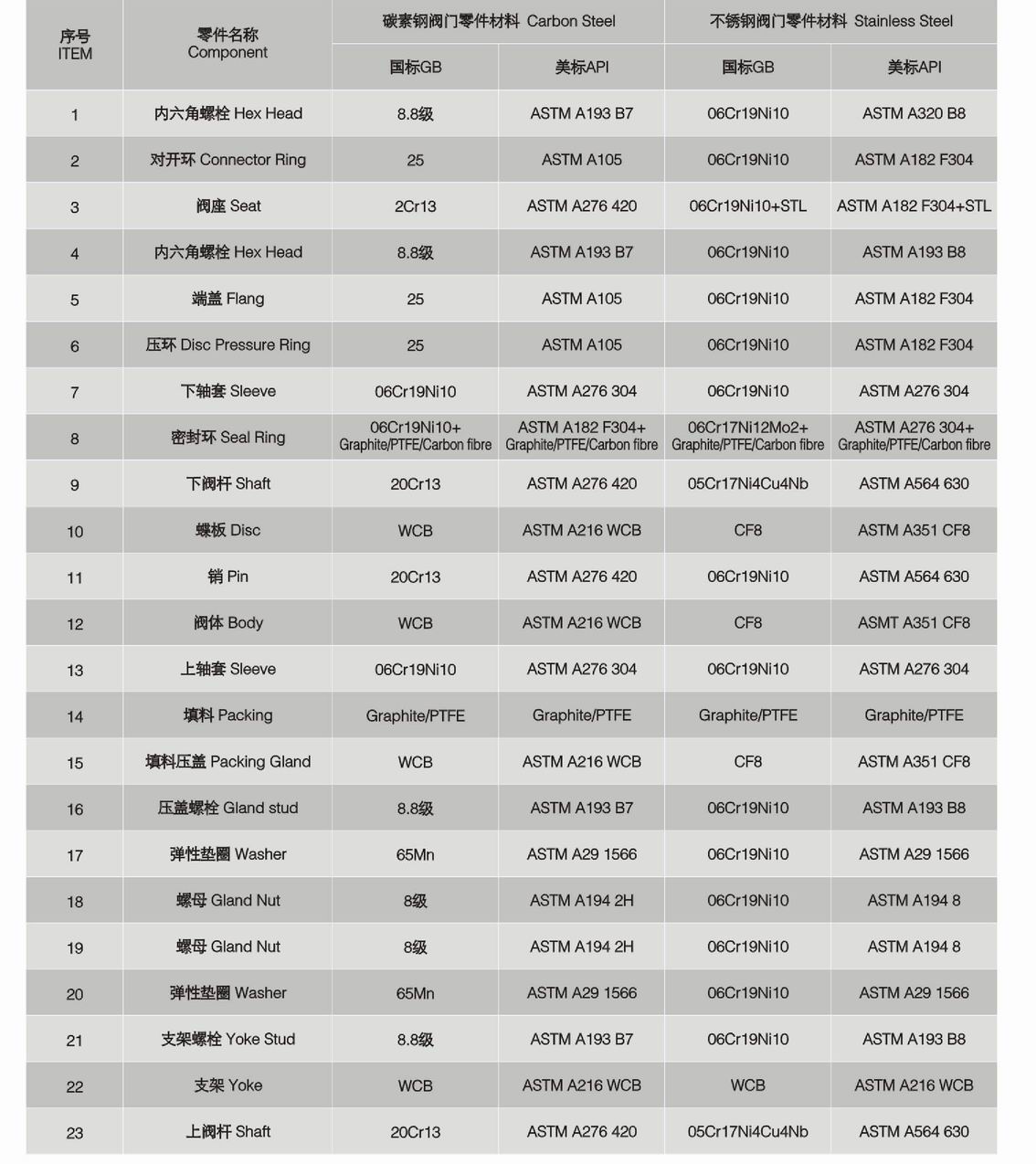

Main Material
Features
- Replaceable seat, provide a long life span
- Seat ring can be fully metal, can meet API 607 fire safe requirements
- ISO5211 Mounting pad for actuator change on site
- High Performance packing sealing
- Blow-out proof steam design
