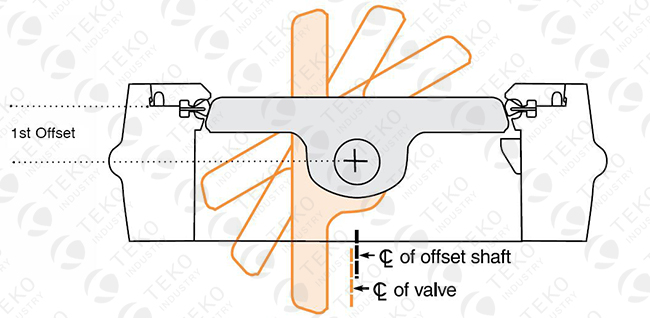

Double Eccentric High Performance Butterfly Valve, with patented seat, provides bi-directional seal, Metal Seal and API609 Fire-safe seal design.

Soft seated: Bi-directional seat with encapsulated elastomeric o-ring for resiliency. Common sea materials include PTFE, RPTFE and UHMWPE.

Metal Seated: TEKO metal seat with metal back-up ring to accomplished by the line contact between a spherical surface and conical surface.

Fire safe seat: Double seat design, bi-directional soft sea design for zero-leakage in normal operation and a metal-to-metal seal after fire, meeting or exceeding industry ”fire-safe” requirements.

FEATURES

• Body Style: Wafer, Lug and Double Flanged
  ASME Class 150 and 300: 2 -1/2” – 30” (65mm - 750mm)
  ASME Class 600: 3” – 14” (80mm - 350mm)
• Capabilities up to 900 °F (482 °C)
• Wear-resistant metal seat provides industry leading low torque
• 3rd party validated high temperature tested
• High strength, anti-blowout one-piece stem
• Nitrided disc for abrasion resistance
• Contoured disc to maximize flow
• Full face retaining ring protects seat in abrasive applications
• Easily accessible and adjustable stem packing
• Class IV bi-directional leakage rates
• Alternative flange drilling available

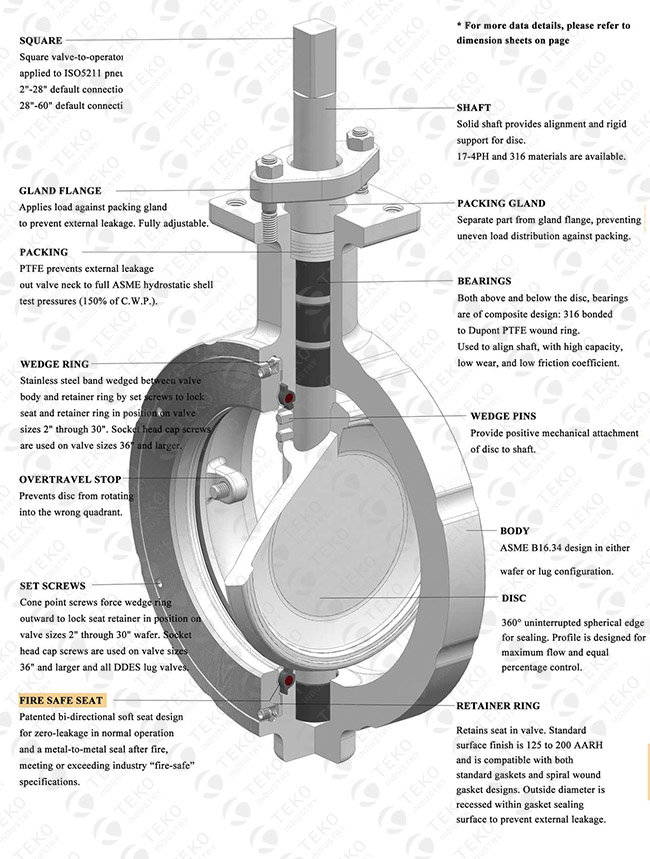

Valve Component-Fire safe seat
