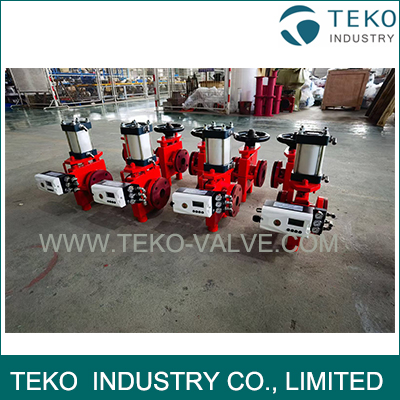

Heavy Duty Blend Rubber SBRT Sleeve Pinch Valve Mining Equipment
- Availability: In Stock
- Product Model: GJ41X
Heavy Duty FLOWROX Blend Rubber SBRT Sleeve Pinch Valve Mining Equipment
Description
Our slurry pinch valves, designed to control abrasive and corrosive slurries, has a reinforced sleeve as the only wetted part of the valve.
There is no need for packing, valve seats and mechanical parts. A choice of controls is available including pneumatic, electro-pneumatic and “smart” positioners
Specifications:
Size Range: 1" (25mm) to 60" (1500mm)
Temperature: -50degF to 250degF
Max. Working Pressure: Up to 300psi (20bar) (consult for higher pressures)
Standard Face-to-Face: ASME B-16.10, DIN 3202, ISO 5732
Flange Drilling: ANSI 150#, ANSI 300#, DIN, JIS, AS
Actuation: Manual self-lubricating hand wheel, with or without gear reducer
Tube Material: NR, PGR, EPDM, NBR, IIR, CR, FPM, CSM (View Chart)
In-Line Tube Change: Yes
Body Material: Ductile iron (CRN available) or aluminum
Material List
| Body | Carbon steel, cast iron Aluminum, plastic |
| Stem & Pinch bar | carbon steel, 40Cr or SS |
| Stud | Corrosion resistant 8.8 class |
| Match flange | Carbon Steel |
| Sleeve Material | SBRT, Natural Rubber, NBR, EPDM, etc |
NOTE: Other materials available upon request

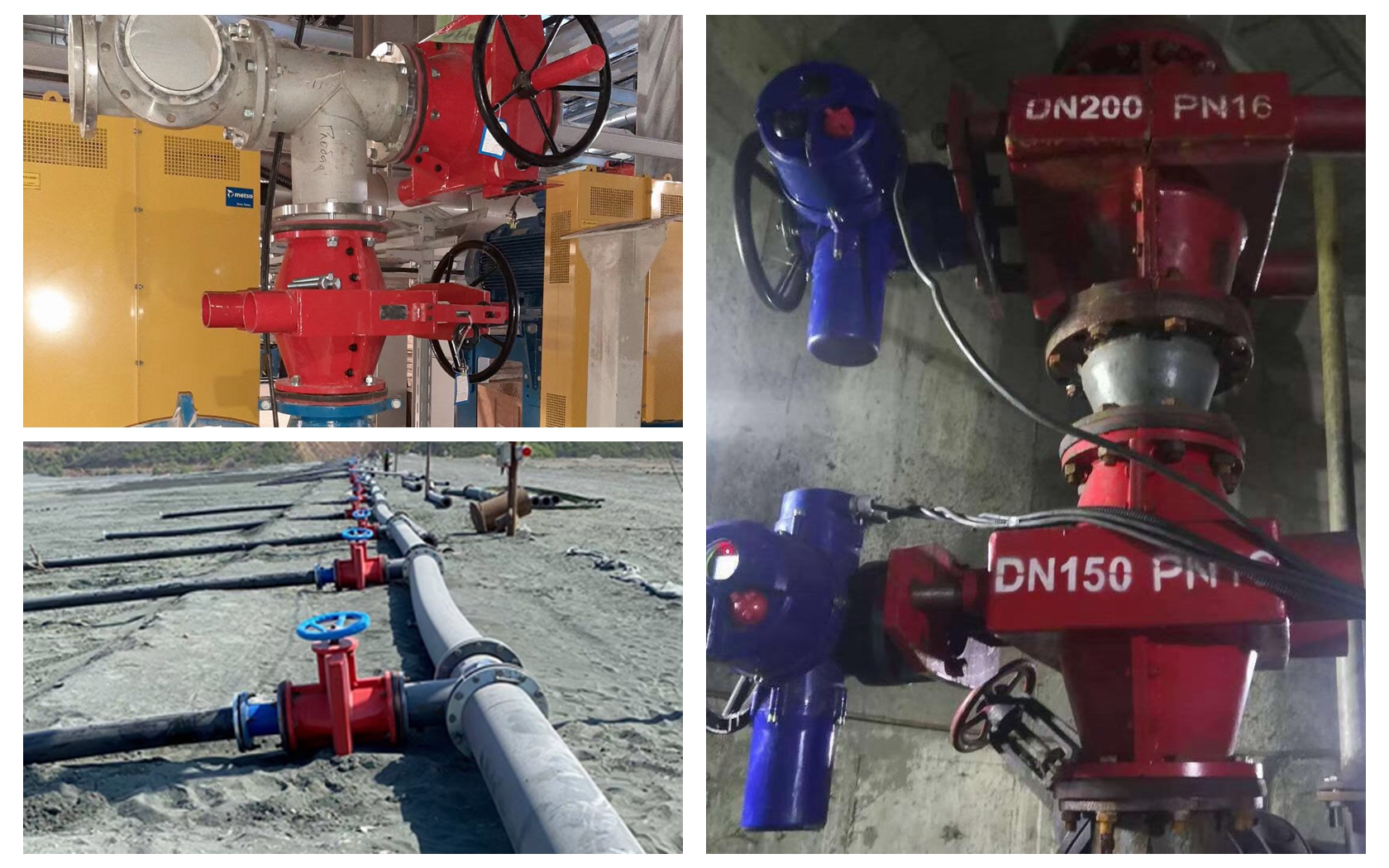

Wide Applicatiions
Our pinch mining equipment are widely applied in the following fields.
| Chemicals, Alkaline Mixtures | Acids, Slurries & intermediates, Liquid Foods, Viscous fluids, Sludge’s, Granules | Dry Suspension | Powder Collectors |
| Gases | Pulps | Vacuum | Sewage Plants |
| Thermal Power Stations Water Containing Ash. | Pharmaceuticals – Picklings | Textiles Industry | Mining & Cement Industry |
| Acid & Chemical Tankers | Refineries | Fertilizers | Sludge Control |
