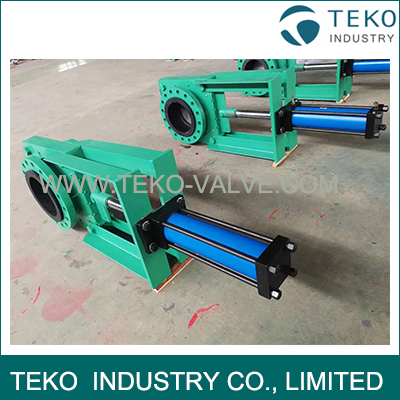

Heavy Duty Pneumatic Knife Valve Pneumatic Slurry Rubber Lined NR Sleeve Stainless Steel

Heavy Duty Pneumatic Slurry Rubber Lined NR SLEEVE Stainless Steel Pneumatic Knife Valve

TEKO Knife Gate Valve with Pneumatic Actuator are manufactured under international Quality Assurance systems; Accredited with ISO 9001 and API Q1 & CE Quality Assurance Programmes.

Size Range: 2" to 42" N. B.
Pressure Classes: ANSI 150, PN6, PN10, PN16
End Connections: Flanged & WAFER

Materials (Standard)
Standard Constructions
Steel: Cast Carbon Steel A216 Gr WCB Body and Bonnet.
F316 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.

Iron: Cast Iron A126 GR. B Body and Bonnet.
F304 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.

Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials.
Various trim materials available to suit service conditions.

Operation
Manual, Electric, Hydraulic-Pneumatic Actuator

Standards Compliance
MSS SP-81, JB/T 8691
Face to Face Dimension: MSS SP-81
Pre-temperature Rating: ANSI B16.34
Flanged Dimension: ANSI B16.5, DIN2533; JB79; GB/T 9113; HG20592
Inspect & Test: API 598, GB/T 13927; JB/T 9092

1.Technical Parameter

Characteristics:

• Bi-directional sealing with two seal rings on both side. No packing is needed.
• The gate forms a cavemous port whose role is that when the gate opens,medium may flow away completely without any detention;when the gate closes,it may be completely sealed.
• When the media are of high concentration, it may also keep the valve seat sealed.As there is no detention area,the bottom of the gate without medium accumulation.
• This products is suitable for the loading and unloading of sugar-making and chemical equipment(dryer and reactor)and th outlet of sizing agent in paper making plants.It may also be used for the recycling of old paper mingled with a large amount of imputities.

Advantages:

• 1.Renewable Seat.Easy maintenance and Reliabiliy are economic acquisition for customers.
• 2.Multi-Seat material can be used in different fluids and solid media
