Handmade Fibercord Reinforced Replaceable Sleeves For FLOROX RED Pinch Valve

Handmade Fibercord Reinforced Replaceable Sleeves For FLOROX RED Pinch Valve

Pinch Sleeves

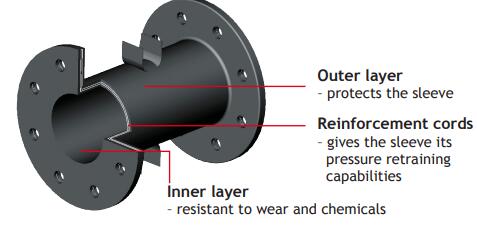

1. Inner Layer: Natural rubber/Synthetic Rubber

The inner layer is the key part of the pinch vale which contacts the medium. It is decided by the working conditions.

2. Cord fabric: to improve the pressure retraining capabilities, make sure that the sleeve work well during operation. Layer quantity depends on the working pressure and vale size.

3、Outer layer: to protect the sleeve from the environmental corrosion, with features of high elasticity, tear-resistance and high fatigue-resistance

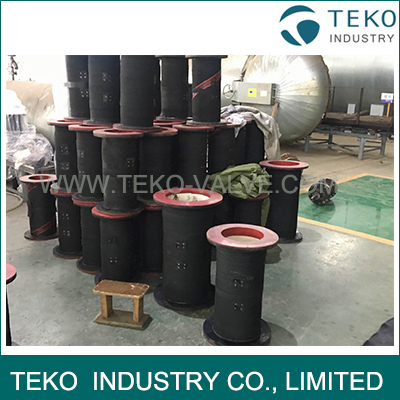

Sleeve Production

Pinch valves are commonly applied in aggressive, abrasive and corrosive media types or in high-pressure applications. To stand these conditions TEKO sleeves are handmade layer by layer in a quality process covered by Standard.

High grade sleeve materials range from wear resistant styrene butadiene to numerous other elastomers and rubber compounds. They are highly resistant to abrasive / corrosive slurries, powders and granular substances.

Sleeve Special Design

Several sleeve design options such as a conical sleeve for control valves and a suction sleeve for negative pressure applications are available.
