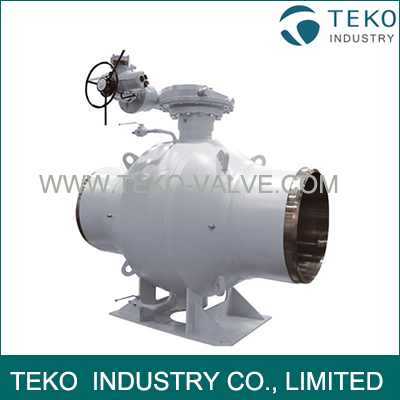

Electric Actuated Carbon Steel Flanged Ball Valve For Oil & Gas Pipeline ASME Standard

Availability: In Stock
Product Model: Q941F

0 Write a review

$0.00

Ex Tax: $0.00

Qty

Add to Cart

Product Inquiry

Add to Wish List Compare this Product

Description
Reviews

Electric Actuated Carbon Steel Material ASME Standard Fully Welded Ball Valve For Oil & Gas Pipeline

Information

Product Name	Full Weld Ball Valve
Valve Type	Full Weld Ball Valve
Size Range	DN15~DN1000, 1/2"~40"
Pressure Range	PN10~PN420, CLASS150~2500
Connection End	RF, RTJ, BW
Standard	API6D, API 598, ASME B16.34, BS5351, MSS SP-25
Operation Way	Manual, Pneumatic Actuator, Electric Actuator
Packing Method	Standard Export worthy duly wooden cases
Shipment Way	By Express, By Air or By Sea, as customer request

Features

- Full Port or Reduce Port
- Weld on Body
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- With or Without Extended Stem
- Underground Using
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5

Standard Material

NO.	Name	Material	NO.	Name	Material	NO.	Name	Material
1	Body	20#/Q345R	8	Stem	17-7ph	15	Drain Plug	20Cr13
2	End Socket	20#/Q345R	9	Oil free bearing	304+PTFE	16	Branch Pipe	AISI20
3	Ball	304	10	Thrust gasket	PTFE+C	17	Upper Gland	A105
4	Seat support Ring	A105+ENP	11	O-ring	VITON	18	Gasket	PTFE+C
5	Seat	PTFE+C	12	Flat key	ANSL 1045	19	Packing	20Cr13
6	O-ring	VITON	13	Base	A105	20	Clamp Spring	65 Mn
7	Spring	17-7PH	14	Hexagon Screw	8.8 degree	21	Bolt/nut	8.8 degree
