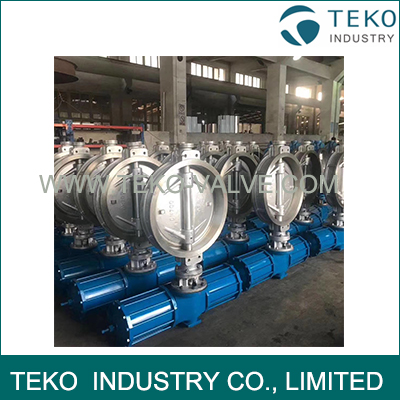

Carbon Steel Pneumatic Triple Eccentric Butterfly Valve Wafer Type Size Rating 2" To 60"

Carbon Steel High Pressure Pneumatic Triple Excentric Butterfly Valve Wafer Type

Features:
1) Design and manufacture standards:
*Wafer and lug: API 609, EN593, DIN 3354
* Flange and weld: BS5155 / EN598

2) Inspection and test standards: API 598, DIN3230, BS5146

3) F-to-F:
*Wafer and lug: API609, DIN 3202 K2
*Flange: ISO 5752

4) End flange dimension: ASME B16.5 (for NPS not more than 24"), ASME B16.47 series B, API 605,
ASME B16.47 series A (for NPS> 24"), or BS EN 1092

5) Top flange: ISO5211

6) Connecting: wafer, lug, flange or weld

7) Size: 2" - 120", DN50 - DN3000

8) Pressure: Class 125 - Class 600, PN6 - PN100

9) Temperature: -20OC - 400OC

Material:

Operation

lever, worm gear, pneumatic, electric, hydraulic or pneumatic-hydraulic

actuator available

Advantages:

1. Long life span
2. Triple Eccentric design, suitable for high pressure and high temperature working conditions.
3. Radiator can be added for high temperature
4. Widely used in foodstuff, beverage, pharmaceutics, boiler, oil refining, chemical
   machinery industries, chemical and petrochemical processing, power generating
   plants, pulp and paper manufacturing processing, desalination, steelmaking, coal
   and mining industries
