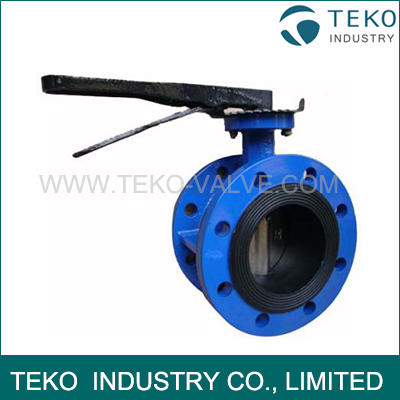

DIN JIS Cast Iron DIN-122F Double Flange Lock Lever Soft Seated Butterfly Valve



Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.



Type

Multi-Flange Wafer

Size & Connections

DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges

Duty

Air • Inert Gas • Oil • Seawater • Water

Pressure Rating

50-200mm PN16 • 250-1200mm PN10

Temperature

0°C to 80°C

Compliance & Approvals

CCS Type Approval





Material List



Part Nr.

Material

Code
  1. Body

Ductile Iron/Cast Steel

FCD/SC49
  1. Seat

Rubber

NBR/EPDM
  1. Disc

SUS/Bronze

SUS304/BC6
  1. Stem

SUS

SUS403

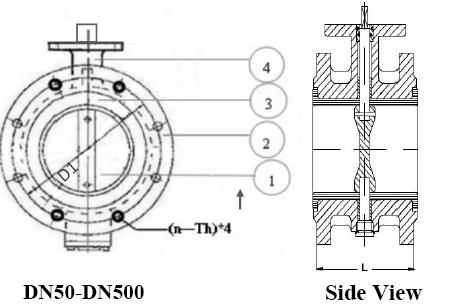

Dimensions



DN

L

PN6

PN10

D1

n-TH

n-d

D1

n-TH

n-d

50

40

110

4XM12

-

125

4XM16

-

65

40

130

4XM12

-

145

4XM16

-

80

60

150

4XM16

-

160

4XM16

4Xφ19

100

60

170

4XM16

-

180

4XM16

4Xφ19

125

100

200

4XM16

4Xφ19

210

4XM16

4Xφ19

150

100

225

4XM16

4Xφ19

240

4XM20

4Xφ23

200

100

280

4XM20

4Xφ19

295

4XM20

4Xφ23

250

110

335

4XM20

8Xφ19

350

4XM20

8Xφ23

300

110

395

4XM20

8Xφ23

400

4XM20

8Xφ25

350

120

445

4XM20

8Xφ23

460

4XM20

12Xφ25

400

130

495

4XM20

12Xφ23

515

4XM24

12Xφ28

450

150

550

4XM20

12Xφ23

565

4XM24

16XM28

500

160

600

4XM20

16Xφ23

620

4XM24

16XM28
