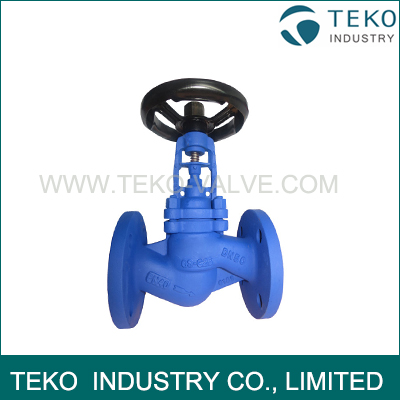

DIN Bellow Seal Bonnet BS 1873 Globe Valve High Pressure High Temperature For Thermal Oil

DIN Bellow Seal Bonnet High Pressure High Temperature BS1873 Globe Valve For Thermal Oil

Technical Data

Size:1/2" - 18" or DN12 - DN450
Pressure: Class150 - Class1500 or PN16 - PN250
Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.

Standards:

• Design&Manufacture: BS 1873, MSS SP-117
• Face to Face/end to end: ASME B16.10, BS2080, DIN3202
• Connection End: ASME B16.5, ASME B16.11, DIN2543-2551
• Test and Inspection: ISO5208, EN12266

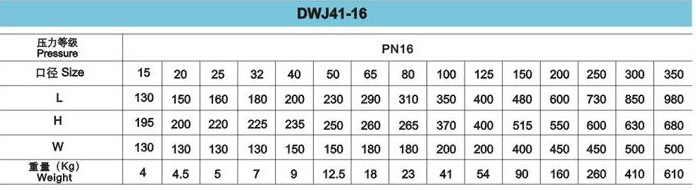

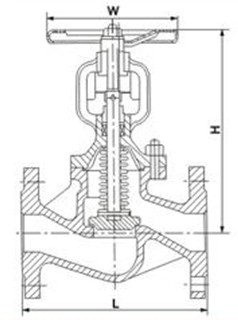

Dimensions & Drawing
