DIN 3356 Handwheel WCB Material Angle Type BS1873 Globe Valve
- Availability: In Stock
- Product Model: J41T

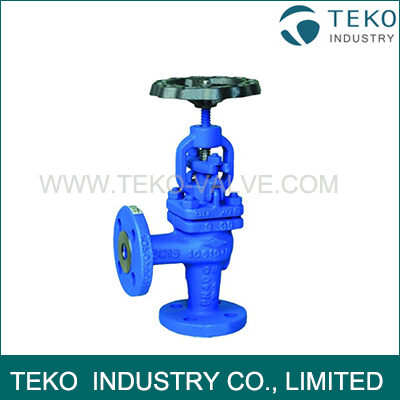

DIN 3356 Handwheel WCB Material Angle Type BS1873 Globe Valve
Quick Detail
Design standard: DIN 3356.
Body material: WCB.
Nominal diameter: DN200 (8 Inch).
Pressure: PN40.
End connection: RF.
Face to face: DIN 3202-F32.
Working temperature: -29℃~+427℃.
Test and inspection: EN 12266-1/2.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150lbs~2500lbs (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+560℃.
Features: The valve can make the medium flowing through the valve to change lowing direction, so generating a certain pressure loss. The valve entry has been designed as pipe-connection and flat bottom.
Products performance specification
|
Nominal Pressure (Mpa) |
Shell Test(Mpa) |
Sealing Test(Mpa) |
Suitable Temp(oC) |
Suitable Medium |
|
1.6 |
2.4 |
1.76 |
-110~600 oC |
Water Oil & Gas |
|
2.5 |
3.75 |
2.75 |
||
|
4.0 |
6.0 |
4.4 |
||
|
6.4 |
9.6 |
7.04 |

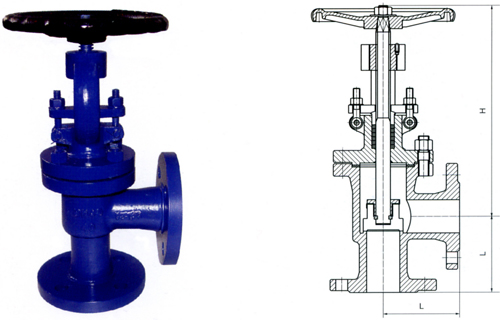

Dimension
|
Pressure (Mpa) |
PN 1.6 Mpa |
|||||||||||||||
|
Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
L |
90 |
95 |
100 |
105 |
115 |
250 |
270 |
280 |
330 |
360 |
390 |
460 |
530 |
630 |
690 |
750 |
|
H |
246 |
260 |
276 |
285 |
300 |
305 |
354 |
402 |
437 |
496 |
541 |
699 |
815 |
914 |
1189 |
1350 |
|
W |
120 |
140 |
160 |
160 |
180 |
200 |
200 |
250 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
|
Weight(kg) |
6 |
7.5 |
8 |
9 |
14 |
22 |
27 |
38 |
55 |
82 |
105 |
220 |
450 |
660 |
810 |
1100 |
