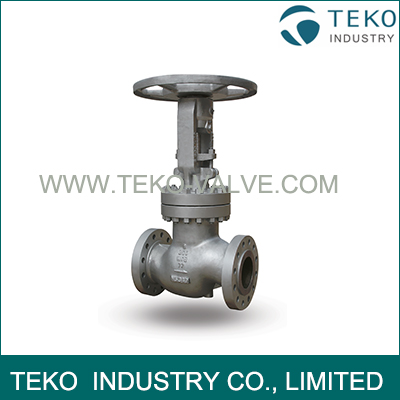

Flanged End Cast Steel Globe Valve Plug Disc 50 mm To 600 mm For WOG Applications

Cast Steel Material Flanged End Plug Disc BS1873 Globe Valve For WOG Applications

• Sizes: 2” to 24” (50 mm to 600 mm)
• Classes: 150 to 1500
• Design: API 623
• Ends: RF, RTJ, BW
• Style: Plug Type Disc
• Materials: WCB, LCC, Alloy Grades

Disk & Seat & Stem of Globe valves

DISK: The most common disk designs for Globe valves are: ball disk, composition disk and the plug disk. Ball disk design is used primarily in low pressure and low temperature systems. It is capable of throttling flow, but in principle it is applied to stop and start flow.

Composition disk design uses a hard, non-metallic insert ring on the disk, which ensures a tighter closure.

Plug disk design provides better throttling than ball or composition designs. They are available in many different designs and they are all long and tapered.

SEAT: Globe valve seats are either integrated or screwed in to the valve body. Many Globe valves have backseats inside the Bonnet. Back seats provide a seal between the stem and Bonnet and prevents system pressure from building against the valve packing, when the valve is fully open. Back seats are often applied in Globe valves.

STEM: Globe valves use two methods for connecting the disk and the stem: the T-slot and the disk nut construction. In the T-slot design, the disk slides over the stem, while in the disk nut design, the disk is screwed into the stem

Material Specifications
