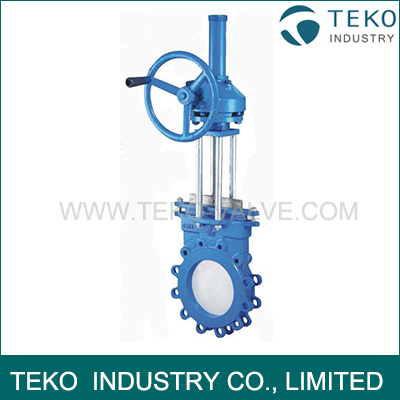

Bevel Gear Operation Soft Seat Valve Uni - Directional Seal Stainless Steel For Sewage
Bevel Gear Operation Soft Seat Valve Uni - Directional Seal Stainless Steel For Sewage
- Availability: In Stock
- Product Model: PZ573X
$0.00
Ex Tax: $0.00
Bevel Gear Operation Uni-directional Seal Soft Seateds Knife Gate Valve For Sewage
Introduction
The TEKO knife gate is a uni-directional seal wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
- Pulp and Paper
- Power plants
- Wastewater treatment plants
- Chemical plants
- Food and Beverage
- Bulk handling
- Mining
- etc.
Featuring a replaceable steel reinforced elastomer seat for enhanced sealing, the TEKO gate valve is easily automated for on/off applications.
- 1. Designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.*
- 2. Unique design and horizontal bolting stabilizes gate ensuring proper alignment.
- 3. Standard multi-layer square packing provides exceptional gland sealing.
- 4. Optional energized quad seal packing for enhanced gland sealing.
- 5. Anti Extrusion Ring minimizes the gap between the body and the gate
- 6. Unrestricted flow path with minimal pressure drop achieved through full port valve design.
- 7. Deflection resistant gate design ensures consistent alignment for industry leading durability.

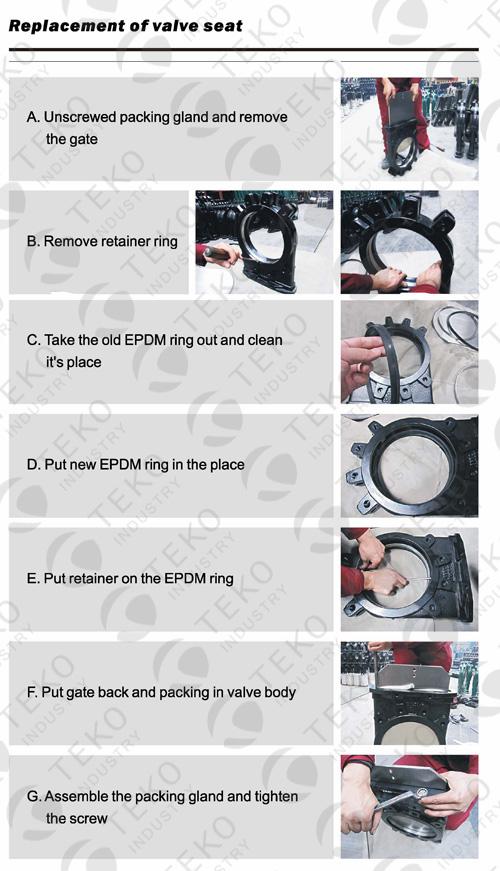

- 8. Replaceable flexible wire reinforced elastomer seat ensures bidirectional zero leakage shutoff.
Sizes:
DN 50 to DN 1200 (larger diameters on request)
Max. Working Pressure
| Size | Pressure |
| DN50-DN250 | 10 kg/cm2 |
| DN300-DN450 | 7 kg/cm2 |
| DN500-DN600 | 4 kg/cm2 |
| DN700-DN900 | 2 kg/cm2 |
| DN1000-DN1200 | 1 kg/cm2 |
Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)
Note: other flange connections (on request):
EN1092 PN6/16/25
BS D and E
ANSI 125
