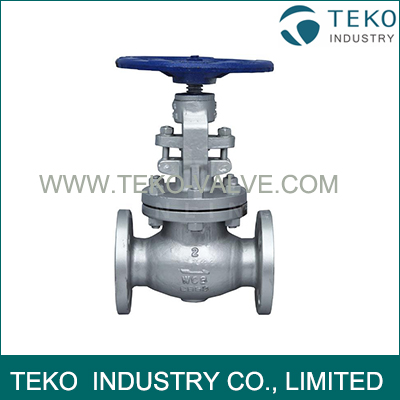

BS 1873 Standard High Pressure Cast Steel BB Manual Globe Valve Class 150



Designed to BS 1873 / API 600 and pressure tested in accordance with API 598/EN12266-1. This heavy duty flanged globe valve offers durability throughout a wide range of industrial applications, boiler plant and rugged environments. Handwheel operated and offered in both ANSI 150, offering maximum service life.

The seat Ring and Wedge Disc are ground and lapped to a mirror finish that provides matching sealing surfaces. A plug type disc is supplied as standard with flat and regulating type discs available on request. Heat treated stainless steel STEM with precision machined ACME threads for long lasting service. Machined Backseat Bushing to provide a secondary metal-metal stem seal. Rising Stem gives open and closed indication of position with large diameter Handwheel for easy operation. Austenitic ductile iron YOKE SLEEVE gives resistance to heat, corrosion and wear. Two piece self-aligning GLAND BUSHING and GLAND FLANGE to prevent damage with high strength alloy steel STUD BOLTS.



Material ASTM A216 WCB, ASTM A351 CF8,ASTM A351 CF8M, ASTM A351 CF3,ASTM A351 CF3M
Part Bolted Bonnet, Outside Screw & Yoke,rising stem, plug type disc
Class Class 150, 300, 600
Design and manufacture API 600 and BS 1873
Face to face dimension ANSI B16.10
Flange end ANSI B16.5
B.W. end

ANSI B16.25







Main Dimensions



DN 150Lb RF Flange Dimensions(mm) Weight
mm in L D D1 D2 b n-φd H D0
15 1/2 108 89 60.5 35 11.2 4-16 241 100 6.9
20 3/4 117 98 69.9 43 12.7 4-16 241 100 9.8
25 1 127 108 79.2 51 14.2 4-16 242 125 13.5
32 1-1/4 140 117 89 63 16 4-16 280 160 19.5
40 1-1/2 165 127 98.6 73 17.5 4-16 286 160 28.5
50 2 203 152 120.7 92 19 4-19 368 200 18
65 2-1/2 216 178 139.7 105 22.4 4-19 387 200 30
80 3 241 190 152.4 127 24 4-19 411 250 41
100 4 292 229 190.5 157 24 4-19 454 250 64
125 5 356 254 216 186 24 8-22.5 455 350 86
