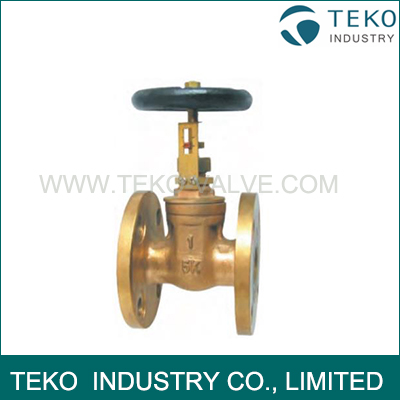

Class 150 10K Non-rising Stem Bronze Material JIS Marine Gate Valve

Class 150 Marine Bronze Gate Valves 5Kg/cm²
General Specification
Type Class 150 Marine Bronze Gate Valves 5 Kg/cm²
HS Code 8481804090
Working Pressure 5 Kgf / cm²
Size DN 15 ~ DN 100
Packing Details
Packing Carton / As your requirement





Test Standard: JIS F7400-1996

Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

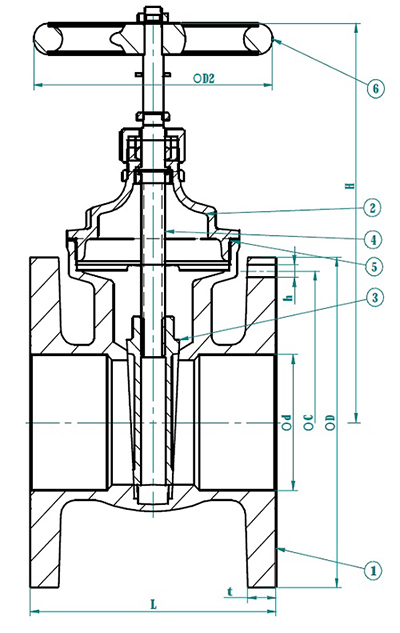

Main Material:

1-Body: Bronze (BC6)

2-Bonnet: Bronze (BC6)

3-Disc:Bronze(BC6)

4-Stem: Brass (C3771BD)

5-Gasket: NBR or non-asbestos

6-Handwheel: Cast Iron (FC200)



Main Size List(mm):

DN

d

L

D

C

No of Bolt

h

t

H

D2

15

20

80

95

70

4

12

9

109

80

20

25

80

100

75

4

15

9

110

80

25

25

80

125

90

4

19

9

110

80

32

39

100

135

100

4

19

11

142

100

40

39

100

140

105

4

19

11

142

100

50

50

115

155

120

4

19

12

167

125

65

62

127

175

140

4

19

13

195

125

80

74

142

185

155

8

19

15

218

140

100

100

165

210

175

8

19

15

271

180
