Wafer End Bi - Direcitonal Seal Industrial Valves , Bubble Tight Knife Valve For Pulp And Paper
- Availability: In Stock
- Product Model: PZ673X

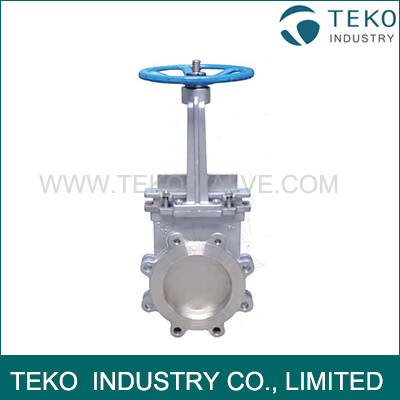

Wafer End Bi-direcitonal Seal Bubble Tight Knife Gate Valve For Pulp And Paper
Introduction
Knife gate valves are mainstay in many industries. With the advantage of short face to face dimensions, it is cheap, easy maintenance and easy installation. The stainless steel knife gate valve are now using more and more frequently.
Applications
| Building Materials | Corn Processing | Paper Recycling | Steel/Wire/Cable |
| Bulk Processing | Mining and Dredging | Fly Ash and Coal | Sugar Processing |
| Cement Production | OEM Hoppers | Scrubbers | Industrial Waste |
Operation Options:
Lever, Pneumatic, Hydraulic, Gear, Chainwheel, Rachet, square drive nuts etc.
Controls: Pneumatic directional control, position switches, positioner, speed controller, FRL. Etc.

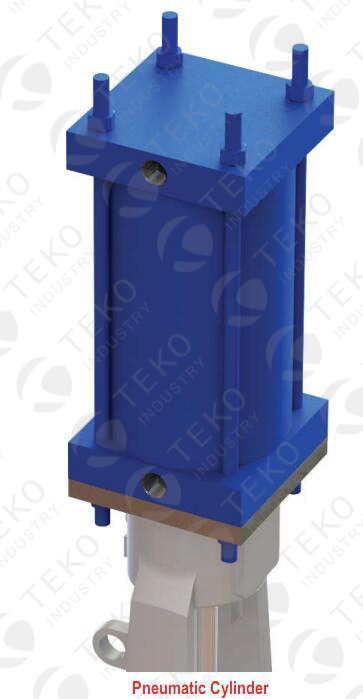

Pneumatic Cylinders- Pneumatic cylinders are offered in both double-acting and spring-return configurations. Sizing is typically based on 3-7 bars compressed air or other compatible gas. Extended sizing ranges are available as needed. Pneumatic cylinders are available in both all steel and non-corrosive FRP tube designs.

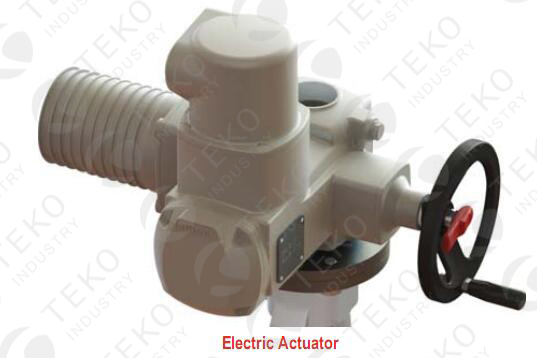

Electric Actuators-Multi-turn electric actuators are available in many brands, voltages, enclosure ratings, and control schemes.

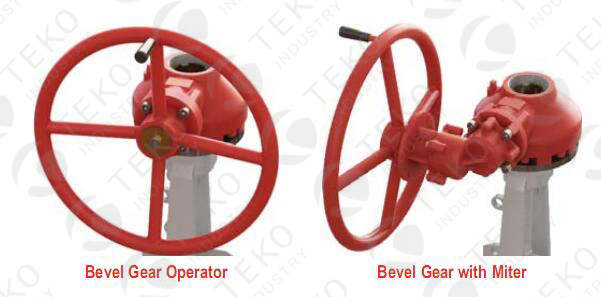

Gear Operators- Enclosed right angle bevel gear operators are available for knife gate valves, Gear operators provide mechanical advantage for easier knife gate valve operation. Options can be combined with gear such as square drive nuts, chainwheel operators, or stem extensions.
Miters-Used in conjunction with bevel gear operators, a 1:1 miter can be used to reorient the input shaft of a gear operator for accessibility or addition of further options.
