Semi Lug Full Bore Valve Bi - Direction Seal Super Slim Design Bevel Gear Operation
Semi Lug Full Bore Valve Bi - Direction Seal Super Slim Design Bevel Gear Operation
- Availability: In Stock
- Product Model: PZ573X
$0.00
Ex Tax: $0.00
Semi Lug Full Bore Bi-direction Seal Bevel Gear Operation Knife Gate Valve
Design Features:
TEKO Bevel Gear Knife Gate Valve are designed to provide long service in highly abrasive applications including pulp and paper, Mining, Chemical, Petrochemical, Power, Steel and food Processing industries. Our heavy duty knife valves are specially designed to provide the shearing and sealing capabilities needed in demanding service such as cyclone separators, recycles high density cleaner, recycle detrashers, hydropulpers, pulper rejects or sand cleaners.
Product Range
Pressure rate: PN10
Size:DN450-DN1200
Body Material: Ductile iron, Carbon Steel,stainless steel, duplex stainless steel
Operated Type: Bevel gear
Max. Working Pressure
| Size | Pressure |
| DN50-DN250 | 10 kg/cm2 |
| DN300-DN450 | 7 kg/cm2 |
| DN500-DN600 | 4 kg/cm2 |
| DN700-DN900 | 2 kg/cm2 |
| DN1000-DN1200 | 1 kg/cm2 |

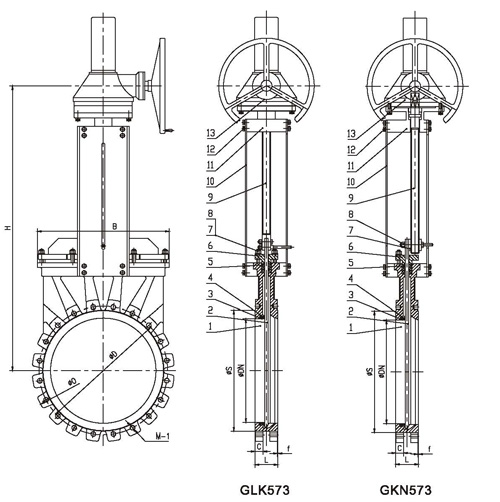

| DN | L | O | D | S | C | f | M-1 | B | H |
| 450 | 106 | 615 | 565 | 525 | 36 | 2 | 20-M24 | 585 | 1170 |
| 500 | 110 | 670 | 620 | 574 | 37 | 2 | 20-M24 | 635 | 1280 |
| 600 | 110 | 780 | 725 | 664 | 37 | 2 | 20-M27 | 720 | 1485 |
| 700 | 110 | 895 | 840 | 1070 | 38 | 2 | 24-M27 | 807 | 1670 |
| 800 | 110 | 1015 | 950 | 955 | 38 | 2 | 24-M30 | 922 | 1880 |
| 900 | 110 | 1115 | 1050 | 955 | 38 | 2 | 28-M30 | 1030 | 2120 |
| 1000 | 110 | 1230 | 1160 | 1080 | 38 | 2 | 28-M33 | 1140 | 2270 |
