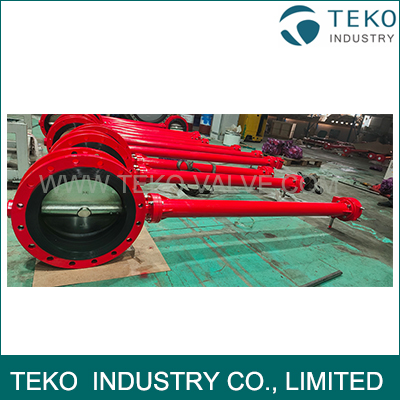

AWWA C504 Type 150LB Top Flange End Rubber Seated Butterfly Valve For Water Works

AWWA C504 Type 150LB Top Flange End Rubber Seated Butterfly Valve For Water Works

PRODUCT FEATURES:

NSF Certified Fusion Bonded Epoxy Coating and EPDM rubber are used for valves to be used for in direct contact with potable (drinking) water, while all other components in contact with water being of Stainless Steel.

We TEKO manufactures butterfly valves fully compliant to AWWA C504 standards. We produce this valves with following end connections to suit varying customer needs.

* Our products are tested for Life Cycle tests as set down in AWWA C 504 standards. During these tests bi-directional sealing is tested under different pressure conditions.

* Our products are designed and tested to provide reliable performance during their entire service life. For Sizes DN 750 and above - The product design allows on-site maintenance and seat replacements option.

* NSF Certified Fusion Bonded Epoxy Coating and EPDM rubber are used for areas of valves coming in direct contact with potable (drinking) water , all other components being Stainless Steel

* The entire manufacturing process strictly complies with AWWA C 504 standards requirements.

* Our products provide high performance, reliable service and long service life.

SPECIFICATIONS

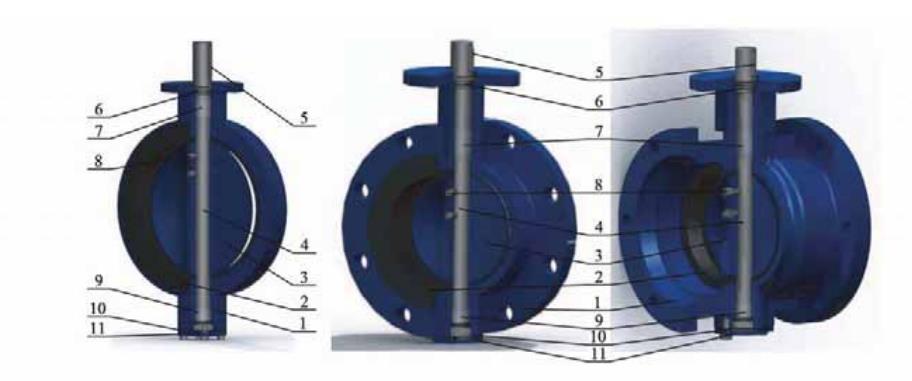

STRUCTURES

Shaft Seal

Self-sealing Y-type or V-type rings provide excellent sealing, low abrasion and long service life when fluid pressure increases

Self-lubricating bearing

Stainless steel backed PTFE bearing is designed for superior lubrication with low maintenance.

Corrosion Resistant Shaft

Stainless steel backed PTFE bearing is designed for superior lubrication with low maintenance.

Streamlined Disc

Disc is available in either ductile iron with stainless steel sealing edge or all stainless steel. The spherical design permit efficient sealing.

Body

Body is available in cast iron or cast steel. Flange dimensions conform to ASME B16.1 class 125 or class 250

Disc

The dome-shaped disc reduces the resistance to the fluid and enhances its strength to be more reliable in service.

Seat

NSF approved EPDM Rubber is used for seat material for applications requiring contact with Potable (drinking) water. The seat is designed to allow field removal/replacement.

MATERIAL LIST
