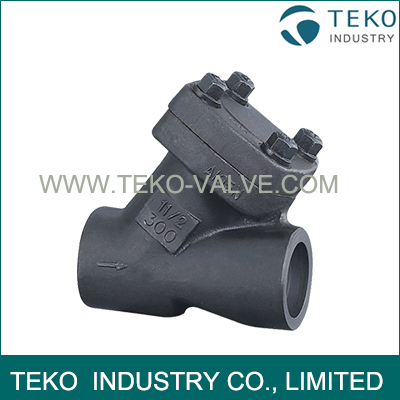

Y Type Filter A105 Forged Steel Strainer 800Lb For Oil & Gas Medium Pres

Y Type Strainer Filter A105 Forged Steel Strainer 800Lb For Oil & Gas

Quick Details

1. Product: Forged Strainer Y Type

2. Sizes: 1/2" -2"

3. Pressure rating: ANSI 150LB - 1500LB, 800LB, 800#

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: Forged Carbon Steel A105 N, LF2

6. Screen: Stainless steel (304SS, 316SS)

7. End connection: SW, NPT, Flange

Generally

1. Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fiber, pharmaceutical and food industry etc.

2. Main Technical Parameters
A) Operating Temperature(℃):CS:-30~380℃, SS: -80~450℃;

B) Operating Pressure(Mpa): 0.6 ~ 13.0 Mpa

C) Body Material: A105 N, LF2, SS304, SS304L, SS316, SS316L etc.

D) Seal Material: Asbestos, NBR, PTFE, Graphite+SS.

E) Strainer Element Material: Stainless steel, Duplex Stainless Steel

F) Screen mesh from 10 mesh to 400 mesh, also we can produce according to customer's requirement.
G) Shell inspection And Test: ISO5208 / API598

Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.

Dimensions & Weights
