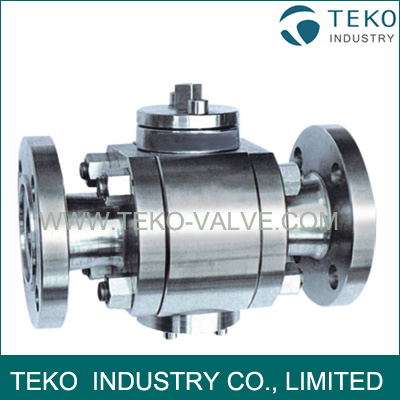

3PCS 3 Pieces Forged Steel Ball Valve

3PCS 3 Pieces Forged Steel Ball Valve
3PCS 3 Pieces Forged Steel Ball Valve
  • Availability: In Stock
  • Product Model: Q41F
0 Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Product Inquiry
Add to Wish List Compare this Product

3PCS 3 Pieces Forged Steel Ball Valve

Specifications:

1)Material:ASTM A105, LF2, F304, F316, F51
2)Size rating:NPS 1/2"-2"
3)Working Pressure:CLASS 800~1500 LB
4)Design Standard:BS-5351 MSS SP-118
5)Face To Face Standard:ASME B16.10
6)Socket Welded End:ASME B16.11
7)Screw Ends: ANSIB1.2
8)Butt-weld Ends:ANSI B 16.25
9) Flange End: ANSI B16.5
10)Test Standard:API 598

Material List for 3 PC Ball Valve:

NO. Parts Name Material
1 Body A105 LF2 F304 F316 F51
2 Seat RPTFE&PEEK RPTFE&PEEK RPTFE&PEEK RPTFE&PEEK RPTFE&PEEK
3 Ball F6 F304 F304(L) F316(L) F51
4 Body A105 LF2 F304(L) F316(L) F51
5 O-ring VITON VITON VITON VITON VITON
6 Stud PTFE B8 B8 B8M B8M
7 Gasket PTFE PTFE PTFE PTFE PTFE
8 Packing Bushing 410 PTFE PTFE PTFE PTFE
9 Gland 410 304 F304(L) F316(L) F51
10 Stem AI 304 F304(L) F316(L) F51
11 Name Plate 1045+Zn AI AI AI AI
12 Lever 2H 1045+Zn 1045+Zn 1045+Zn 1045+Zn
13 Nut AI 8M 8M 8M 8M
14 Elastic Washer 65Mn 65Mn 304 304 304
15 Anti-static Spring 304 304 304 F316L F316L
