3 Way Jacketed Ball Valve

3 Way Jacketed Ball Valve
3 Way Jacketed Ball Valve
  • Availability: In Stock
  • Product Model: BQ45H
$0.00
Ex Tax: $0.00

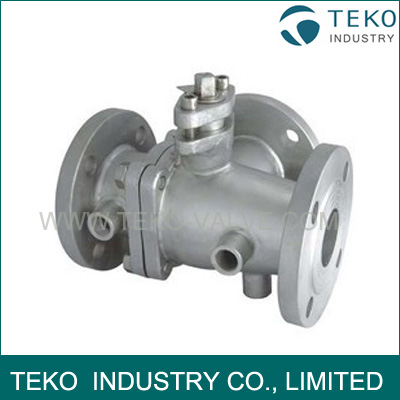

Bitumen/Asphalt 3 Way Jacketed Ball Valve

Specifications:


1)Material:Stainless Steel, WCB,  A105 etc
2)Size rating:1/2"~4"
3)Working Pressure: Class 150~600 Lb
4)Design Standard: API
5)Suitable temperature: -20°F---400°F (-29°C- 200°C)
6)Face To Face Standard:ANSI B16.10
7)FLANGE END STD:ANSI B 16.5

Material List

No. Part Name Material
1 Body WCB
2 Jacket A3
3 Seat F304
4 Ball F304
5 Gland Plate WCB
6 Stem 2Cr13
7 Packing Graphite
8 Gland WCB
9 Lever Cast Iron



Features:

1)Investment casting
2)Blowout proof stem
3)Anti-Static Design
