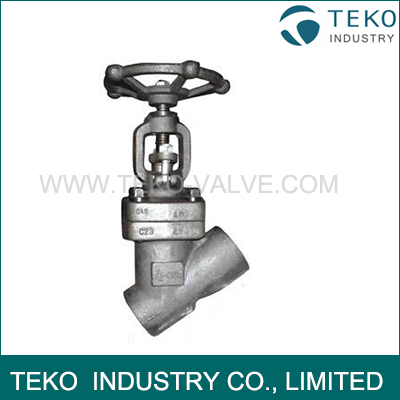

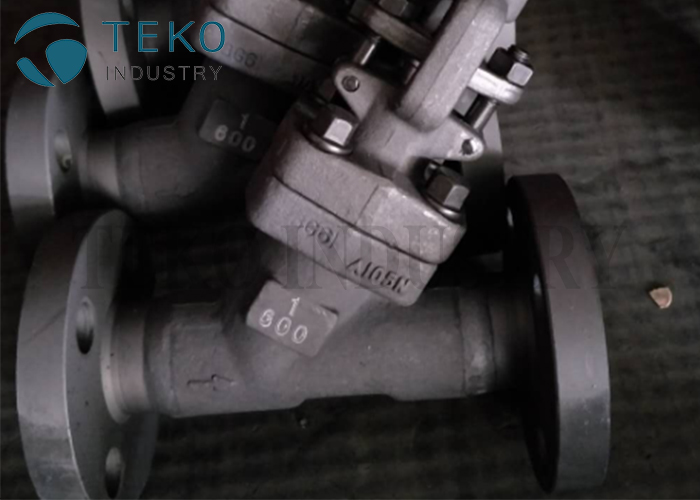

High Pressure API 602 SW Flange End F304 F316 Stainless Steel Globe Valve
- Availability: In Stock
- Product Model: G54Y
High Pressure API 602 SW Flange End F304 F316 Stainless Steel Globe Valve
Description
The design of the compact but very strong, because of the service, high solid CoCr alloy wedge (optional) ensures low friction and long service life, packing ring preloading 4000 psi with high integrity seal welded bonnet valves, valve cover internal thread, torque to engineering torque value, the valve bonnet joint made of welding strength, can double to prevent leakage.(body/bonnet threads and strength welds), fully guided wedge reduces wear on seat surfaces, optional dual packing, leak free connection, live load and packing blow out for easy removal of old packing.
Features：
1. Seat faces lapped for smooth finish and superior sealing;
2. Swivel disc for optimal seating and longer seat life;
3. Stems of hand wheel operated valves are rotating / rising design;
4. Each valve is shell, seat and backseat pressure tested per industry standard API 598;
5. Gland is two piece gland / gland flange design for optimal alignment and uniform packing compression;
6. Alternate valve materials such as chrome and stainless steel alloys -Alternate trim materials -Bypass, drain and other auxiliary connections -Gear, motor, and cylinder actuators available .
Product Range:
Body material: A105
Nominal diameter: 1/2"～2 1/2"
Pressure range:Class150～2500（PN10~PN420）
End connection: RF, RTJ, BW
Working temperature:-29℃～560℃
Operation: Handwheel, Gear Box, Electric Actuator, etc.
Material
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
|
Type A105 |
Type A182 F22 |
Type A182 F304(L) |
Type A182 F316(L) |
||
|
1 |
Body |
A105N |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Disc |
A105N |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Stem |
A182 F6a |
A182 F304(L) |
A182 F316(L) |
|
|
4 |
Seat |
A105N |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Seal Face |
F182 F304L |
A182 F304(L) |
A182 F316(L) |
|
|
6 |
Bonnet |
A105N |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
Gasket |
A105N |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
8 |
Stem Nut |
A276 F420 |
|||
|
9 |
Bearing Cover |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
10 |
H.W.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
11 |
Handwheel |
A197 |
|||
|
12 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A1983 B8M |
|
13 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
14 |
Gland |
A216 WCB |
A351 CF8 |
||
|
15 |
Hinged Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A1983 B8M |
|
16 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
17 |
Pin |
A276 420 |
A182 F304 |
||
|
18 |
Bushing |
A276 410 |
|
A182 F304 |
|
|
19 |
Eyebolt |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
20 |
Accending nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
21 |
Packing |
SS+Graphite |
|||
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH2OOH etc |
||
|
Suitable Temperature |
-29~425 |
-29~550 |
-29~180 |
||
Dimensions
800Lb
|
NPS |
Conv. |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
L |
|
98 |
98 |
120 |
140 |
140 |
172 |
|
H (OPEN) |
|
240 |
240 |
290 |
302 |
368 |
370 |
|
W |
|
100 |
100 |
125 |
160 |
160 |
180 |
|
Weights |
Bolted |
4.6 |
4.6 |
7.6 |
9.8 |
13.7 |
14 |
|
Welded |
4.7 |
4.7 |
7.7 |
9.9 |
13.8 |
14.2 |
1500Lb
|
NPS |
Conv. |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
L |
|
120 |
120 |
140 |
140 |
172 |
190 |
|
H (OPEN) |
|
170 |
195 |
235 |
278 |
278 |
310 |
|
W |
|
125 |
125 |
160 |
160 |
180 |
200 |
|
Weights |
Bolted |
4.5 |
6.1 |
7.6 |
9.8 |
14.5 |
20.8 |
|
Welded |
4.6 |
6.2 |
7.7 |
9.9 |
14.6 |
21 |
