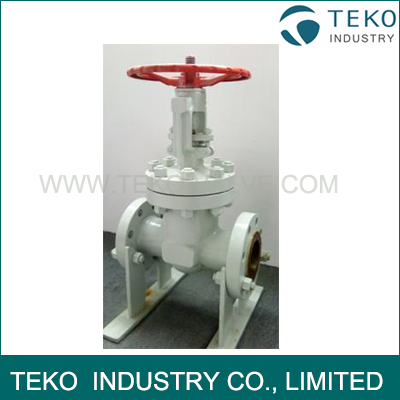

LCB LCC Material Extension Stem Wedge Gate Valve For Cryogenic Working Conditions

LCB LCC Material Extension Stem Wedge Gate Valve For Cryogenic Working Conditions
LCB LCC Material Extension Stem Wedge Gate Valve For Cryogenic Working Conditions
  • Availability: In Stock
  • Product Model: Z41Y
0 Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Product Inquiry
Add to Wish List Compare this Product

LCB LCC Material Extension Stem Wedge Gate Valve For Cryogenic Working Conditions





Low Temperature Material


LCB, LCC, LC1, LC3, LF2 material gate valves used for low temperature working conditions. Heavy duty Out Side Screw & Yoke Type, Bolted Bonnet, Rising Stem, Non Rising Hand Wheel, Renewable Seat ring for Carbon Steel Valves, Integral for Stainless Steel Valves. Valves with most advanced design features provide the ultimate in dependable, economic flow control.





Steel Type Grade (forging) Grade (cast) Composition Min Temperature
Austenitic A182, F316 A351 CF8M 18Cr, 8Ni, 2Mo -196ºC
Nickel Based Steel A350 LF3 A352 LC3 3 1/2Ni -101ºC
Nickel Based Steel NO EQUIV A352 LC2 2 1/2Ni -73ºC
Low Temp Carbon Steel NO EQUIV A352 LC1 0.5Mo -59ºC
Low Temp Carbon Steel A350 LF2 A352 LCB Carbon Steel -46ºC





Compliance Standard



Parameter Compliance to
Design API 600 - ISO 10434/BS 1414/ASME B 16.34
Pressure Temperature Rating ASME B 16.34
Face to Face / End to End ASME B 16.10/ISO 5752/ BS 2080/DIN
End Flange Dimensions ASME B 16.5/ISO 7005-1/API 605/ BS 3293/ DIN
Butt Weld End Dimensions ASME B 16.25
Valve Inspection & Testing ISO 5208 /API 598/ BS 6755 Part I
