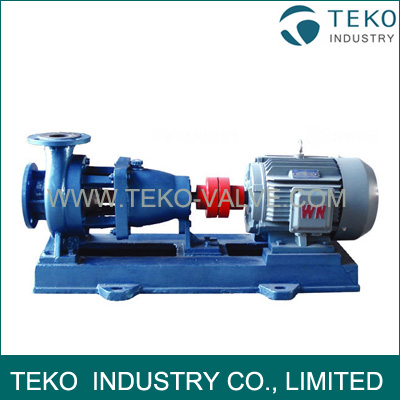

PTFE Lining Centrifugal Chemical Pump

IHF Fluoroplastic(PTFE) lined chemical pump is developed according to international standard. The pump casing is made of cast steel lined with PTFE (F46); cover, impeller and shaft sleeve are made of metal wrapped by PTFE (F46). We use the bellow type mechanical seal as the shaft seal, with 99% alumina ceramics(or silicon nitride) stator and PTFE-packing rotator, to achieve good corrosive-resistant and seal. It has several advantages of strong mechanical robustness, hard aging, no toxin broken up, and strong corrosion resistance. It can deliver any concentrate organic acid, inorganic acid, or both mixed.

Specifications:

1. Flow rate up to 100m3/h
2. Delivery head up to 40.0m
3. Power up to 30.0 kw     2900/1450 r/min
    Volt=380V/50HZ
   Three-phase power supply  if request.
   Single-phase power supply if request.
4. Suitable Medium:Acid,Alkali,Oxidant and other kinds of Liquid , IN EVERY CONCENTRATION.
5. Suitable Temperature:-82°C~+130°C
6. Mechanical Seal

Materials:

Casing:Cast Steel Lined With PTFE
Impeller:Cast Steel Lined With PTFE
Pump Cover: Cast Steel Lined With PTFE

Technical Parameters:

Model No. Speed     (r/min) Flow rate Head     (m) Eff     (%) Power(KW)
(m3/h) l/s Shaft Motor
IHF32-25-125 2900 5 1.39 20 44 0.62 1.5
1450 2.5 0.69 5 40 0.085 0.75
IHF32-25-125A 2900 4.5 1.25 16 41 0.48 1.1
IHF32-25-160 2900 5 1.39 32 40 1.1 2.2
1450 2.5 0.69 8 38 0.143 0.75
IHF32-25-160A 2900 4.5 1.25 28 35 0.97 1.5
IHF40-32-125 2900 6.5 1.8 20 45 0.79 2.2
1450 3.25 0.9 5 41 0.108 0.75
IHF40-32-125A 2900 5.6 1.56 16 42 0.58 1.5
IHF40-32-160 2900 6.5 1.8 32 40 1.42 2.2
1450 2.5 0.9 8 36 0.15 0.75
IHF40-32-160A 2900 5.6 1.56 28 38 1.23 1.5
IHF50-32-125 2900 12.5 1.56 20 54 1.26 2.2
1450 6.25 1.74 5 46 0.18 0.75
IHF50-32-125A 2900 11 3.05 16 52 0.92 1.5
IHF50-32-160 2900 12.5 3.47 32 48 2.27 4
1450 6.25 1.74 8 41 0.33 0.75
IHF50-32-160A 2900 11.7 3.25 28 47 1.88 3
IHF50-32-200 2900 12.5 3.4 50 42 4.1 7.5
1450 6.25 1.745 12.5 33 0.65 1.5
IHF50-32-200A 2900 11.7 3.25 44 40 3.5 5.5
IHF50-32-250 2900 12.5 3.47 80 35 7.8 11
1450 6.25 1.74 20 27 1.6 2.2
IHF50-32-250A 2900 11.7 3.25 70 34 6.56 7.5
IHF65-50-125 2900 25 6.94 20 64 2.13 3
1450 12.5 3.47 5 57 0.3 0.75
IHF65-50-125A 2900 22.3 6.19 16 62 1.57 2.2
IHF65-50-160 2900 25 6.94 32 59 3.69 5.5
1450 12.5 3.47 8 53 0.51 1.1
IHF65-50-160A 2900 23.3 6.5 28 58 3.1 4
IHF65-40-200 2900 25 6.94 50 54 6.3 11
1450 12.5 3.47 12.5 46 0.93 1.5
IHF65-40-200A 2900 23.3 6.5 44 53 5 7.5
