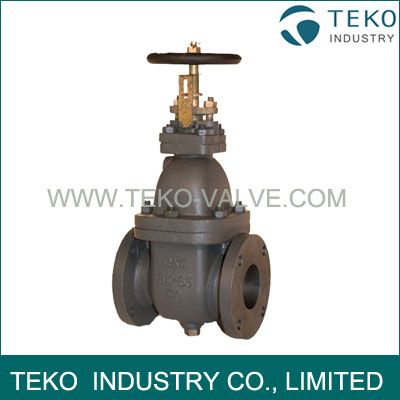

Marine cast iron gate valve
Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:
Marine cast iron gate valve
Main Materials:
1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD

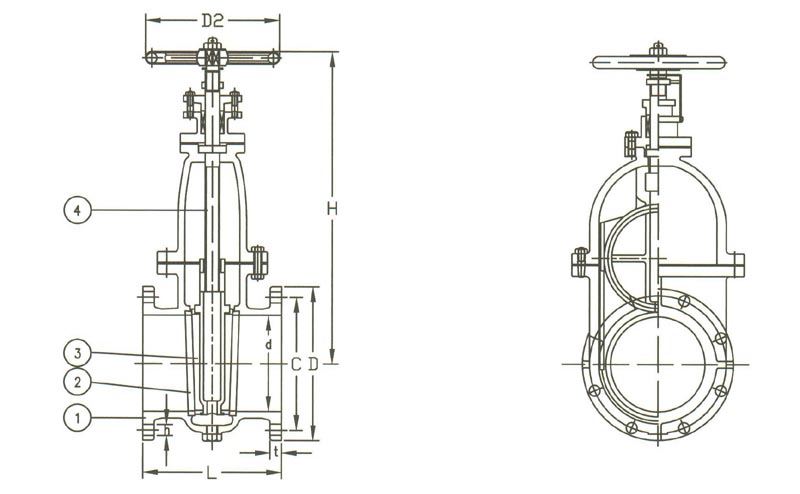

Drawing of Marine cast iron gate valve:
Model No. |
Flange diam. |
Flange Pitch |
Flange Hole |
Weight |
TEKO ID |
|
L(mm) |
D(mm) |
C(mm) |
n*d(mm) |
W(kgs) |
F7363 5K50 |
180 |
130 |
105 |
4×Ф15 |
13.5 |
F7363 5K65 |
190 |
155 |
130 |
4×Ф15 |
19 |
F7363 5K80 |
200 |
180 |
145 |
4×Ф19 |
24.2 |
F7363 5K100 |
230 |
200 |
165 |
8×Ф19 |
35.3 |
F7363 5K125 |
250 |
235 |
200 |
8×Ф19 |
48.1 |
F7363 5K150 |
270 |
265 |
230 |
8×Ф19 |
65.3 |
F7363 5K200 |
290 |
320 |
280 |
8×Ф23 |
103 |
F7363 5K250 |
330 |
385 |
345 |
12×Ф23 |
164 |
F7363 5K300 |
370 |
430 |
390 |
12×Ф23 |
236 |
F7363 5K350 |
410 |
480 |
435 |
12×Ф25 |
307 |
F7363 5K400 |
470 |
540 |
495 |
16×Ф25 |
405 |
F7363 5K450 |
500 |
605 |
555 |
16×Ф25 |
556 |
F7363 5K500 |
550 |
655 |
605 |
20×Ф25 |
700 |
F7363 5K550 |
600 |
720 |
665 |
20×Ф27 |
878 |
F7363 5K600 |
660 |
770 |
715 |
20×Ф27 |
1120 |
Our Products:
Introduction | |
title1 | End Type:Flange |
title5 | PN:5K |
title7 | End Standard:JISB2220 |
title8 | Design Standard:JISF7400 |
title10 | DN:50mm-600mm |
