F7409 Bronze SDNR Globe Valve
Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:

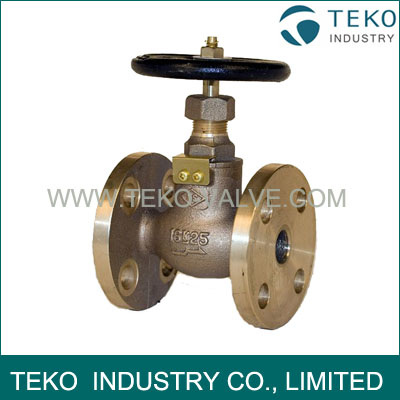

F7409 Bronze SDNR Globe Valve
Main Material
1 - Body - Bronze - BC6
2 - Disc - Bronze - BC6
3 - Stem - Brass - C3771BD

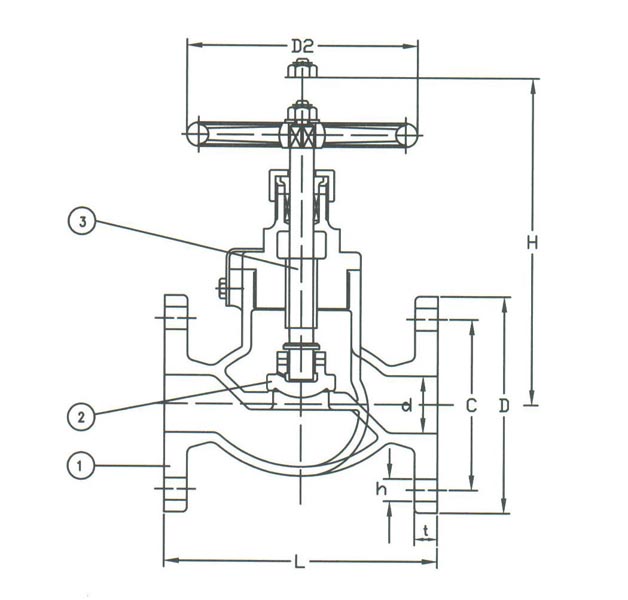

Drawing & Dimensions of SDNR Globe Valve
Item NO. |
Size |
L (mm) |
D |
C |
Number of Holes |
h |
F7409-015 |
15 |
110 |
95 |
70 |
4 |
15 |
F7409-020 |
20 |
120 |
100 |
75 |
4 |
15 |
F7409-025 |
25 |
130 |
125 |
90 |
4 |
19 |
F7409-032 |
32 |
160 |
135 |
100 |
4 |
19 |
F7409-040 |
40 |
180 |
140 |
105 |
4 |
19 |
F7409-050 |
50 |
220 |
155 |
120 |
8 |
N/A |
Our Products
Introduction | |
title3 | Flanges as per JIS B2220 - 16K |
title5 | Manufactured in accordance to JIS F7400 |
