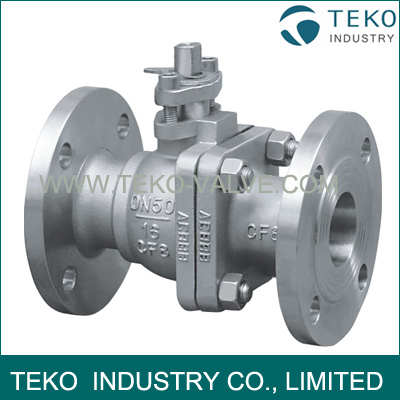

Q41H Stainless Steel Flanged Ball Valves, 2 Way Flanged Ball Valve

Specifications:

1)Material:WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316
2)Size rating:NPS 2"-24"
3)Working Pressure:CLASS 150~300 LB
4)Design Standard:API608/BS5351/API 6D
5)Face To Face Standard:ASME B16.10
6)End Connection Standard:ASME B16.5, ASME B16.47, ASME B16.25
7)Test Standard:API 598

Material List:


No. Parts Name Material
1 Body ASTM A216 Gr.WCB
2 Seat Seal PTFE
3 Ball SS 304
4 Stem ASTM A182 F6a
5 Gasket PTFE
6 Spring SS 304
7 Steel Ball SS 304
8 Packing PTFE
9 Packing Bushing ASTM A276 410
10 Nut ASTM A193 Gr.B7
11 Retaining ring SS 304
12 Lever ASTM A216 Gr.WCB
13 Gauge Block AISI 1010Zinc-coated
14 Packing Gland ASTM A216 Gr.WCB
15 Body Gasket PTFE
16 Bonnet ASTM A216 Gr.WCB
17 Stud ASTM A193 Gr.B7
18 Nut ASTM A194 Gr.2H

Note: Other materials are also available: ASTM A352 LCB, A217 WC1, WC6,WC9, C5, A351 CF8, CF8M, CF3, CF3M etc.
