Product Code: Q647H-150Lb
Availability: In Stock
Product Inquiry
More details

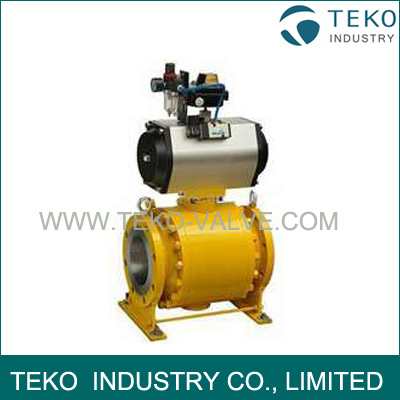

Pneumatic High Pressure High Temperature Forged Steel Fixed Ball Valve

Specifications:

1)Material:Cast Steel, Stainless Steel
2)Size rating:NPS 2"-36"
3)Working Pressure:Class 150~2500 LB
4)Design Standard:ASME B16.34-2004
5)Face To Face Standard:ASME B16.10
6) Flange End: ASME B16.5, ASME B16.47
7)Test Standard:API 598

Features of Fixed Ball Valve:

1.Equiped with a handwheel locker, in case of disoperation.
2.Blow out proof design
3.Easy Operation
4.Conforms to API607 Fire safe design
5.Mounting flange according to ISO 5211
6.Anti-static Stem Design.
7.Close contact of the ball and seat face under high temperature, achieved a good seal
performance.
