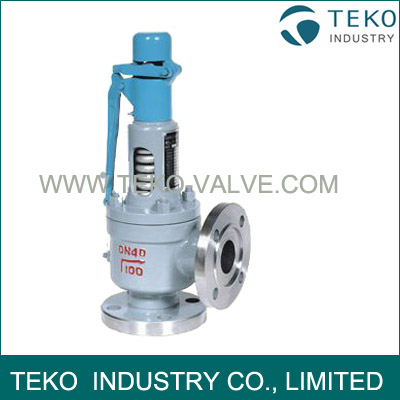

Full Bore Pressure Safety Valve
A48Y Full Bore Safety Valve is used for the equipment and pipeline of the medium with steam, air and other medium less than 350 degree.
A44Y Full Bore Safety Valve is used for the equipment and pipeline of the medium with air, petroleum gas medium less than 300 degree.
Material List:
| NO. | Parts Name | Material (A44Y-C/A48Y-C) |
Material (A44Y-P) |
Material (A44Y-R) |
| 1 | Body | WCB | ZG1Cr18Ni9Ti | CF8M |
| 2 | Nozzle | ZG2Cr13 | 1Cr18Ni9Ti | 316 |
| 3 | Adjusting Ring | ZG2Cr13 | ZG1Cr18Ni9Ti | 0Cr18Ni12Mo2Ti |
| 4 | Disc Holder | 2Cr13 | ZG1Cr18Ni9Ti | 316 |
| 5 | Disc | 2Cr13 | 1Cr18Ni9Ti | 316 |
| 6 | Guide Sleeve | 2Cr13 | 1Cr18Ni9Ti | 0Cr18Ni12Mo2Ti |
| 7 | Bonnet | ZG230-450 | ZG230-450 | ZG1Cr18Ni9Ti |
| 8 | Spring | 50CrVA | 50CrVA Coated PTFE | 50CrVA Coated PTFE |
| 9 | Stem | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 10 | Lever | ZG200-400 | ZG200-400 | ZG200-400 |
| 11 | Adjusting Bolt | 45 | 2Cr13 | 2Cr13 |
| 12 | Cap | ZG200-400 | ZG200-400 | ZG200-400 |
